【漫漫科研路\pgfplots】子图的多种画法

发表于 更新于
本文字数： 8.3k 阅读时长 ≈ 12 分钟

在科研论文写作中，有时候为了横向、纵向对比或者节省空间，我们需要画子图，在MATLAB中可以通过subplot命令来实现。在Latex中有以下几种方法进行子图的绘制：

  • 使用subfig宏包（有可能与hyperref宏包冲突，推荐使用subcaption宏包），主要格式为：
1
2
3
4
5
6
\begin{figure}
\subfloat[]{}
\subfloat[]{}\\
\subfloat[]{}
\subfloat[]{}
\end{figure}
  • 使用subcaption宏包，主要格式为：
1
2
3
4
5
6
\begin{figure}
\subcaptionbox{}{}
\subcaptionbox{}{}\\
\subcaptionbox{}{}
\subcaptionbox{}{}
\end{figure}
  • 使用groupplot宏包，主要格式为：
1
2
3
4
5
6
7
8
9
10
  \begin{figure}
\centering
\begin{tikzpicture}
\begin{groupplot}
\nextgroupplot
\addplot {x};
\nextgroupplot
\end{groupplot}
\end{tikzpicture}
\end{figure}
  • 使用matrix宏包，主要格式为：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
    \begin{figure}
\centering
\begin{tikzpicture}
\matrix
 {
 \begin{axis}
 \addplot {x};
 \end{axis}

  \begin{axis}
 \addplot {x};
 \end{axis}
 }
\end{tikzpicture}
\end{figure}

下面给出上述各种情况的具体代码实现以及示意图：

  • 使用subfig宏包
    图1
    代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
\documentclass{article}
\usepackage[dvipdfm]{graphicx}
\def\pgfsysdriver{pgfsys-dvipdfmx.def}
\usepackage{tikz}
\usepackage{pgfplots}
\usepackage{subfig}%使用子图包，可能与hyperref冲突
\usepackage{float}
\usepackage{cite}
\usepackage[colorlinks,dvipdfm,
            pdfpagemode=UseOutlines,
            pdfstartview=FitH,
            anchorcolor=green,
            citecolor=blue,
            linkcolor=red,
            hyperindex=true,
            pagebackref,
            bookmarksnumbered,
            bookmarksopenlevel=2,
            colorlinks]{hyperref}

\pgfplotsset{width=6cm,compat=1.15}

\begin{document}
\begin{figure}
\begin{center}
\subfloat[\label{subfig1}]{
\begin{tikzpicture}
\begin{axis}[
legend columns=-1,%the legend are plotted horizontally
legend entries={$x$},
legend to name=named,% stored in named, not plotted in the figure
title={subfig1},
]
\addplot {x};\label{curvex}
\end{axis}
\end{tikzpicture}\label{subfig2}}
\subfloat[]{
\begin{tikzpicture}
\begin{axis}[title={subfig2}]
\addplot {x};
\end{axis}
\end{tikzpicture}\label{subfig2}}
\end{center}
\caption{\hspace{1em}Two subfigures.}\label{f1}
\end{figure}
As depicted in Figures~\ref{subfig1} and \ref{subfig2}, the subfigures of Figure~\ref{f1}, \ref{curvex} represents function $f(x)=x$.

\end{document}
  • 使用subcaption宏包
    图2
    代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
\documentclass{article}
\usepackage[dvipdfm]{graphicx}
\def\pgfsysdriver{pgfsys-dvipdfmx.def}
\usepackage{tikz}
\usepackage{pgfplots}
%\usepackage{subfig}
\usepackage[hypcap=true,labelsep=period,font=small]{caption}% 图的标题设置Fig.
\usepackage[hypcap=true]{subcaption}%用于画子图 可以适配hyperref包
\usepackage{float}
\usepackage[colorlinks,dvipdfm,
            pdfpagemode=UseOutlines,
            pdfstartview=FitH,
            anchorcolor=green,
            citecolor=blue,
            linkcolor=red,
            hyperindex=true,
            pagebackref,
            bookmarksnumbered,
            bookmarksopenlevel=2,
            colorlinks]{hyperref}
\pgfplotsset{width=6cm,compat=1.15}
\begin{document}
\begin{figure}
\begin{center}
\subcaptionbox{\label{subfig1}}{
\begin{tikzpicture}
\begin{axis}[
legend columns=-1,%the legend are plotted horizontally
legend entries={$x$},
legend to name=named,% stored in named
title={subfig1},
]
\addplot {x};\label{curvex}
\end{axis}
\end{tikzpicture}}
\subcaptionbox{\label{subfig2}}{
\begin{tikzpicture}
\begin{axis}[title={subfig2}]
\addplot {x};
\end{axis}
\end{tikzpicture}}
\end{center}
\caption{\hspace{1em}Two subfigures.}\label{f1}
\end{figure}

As depicted in Figures~\ref{subfig1} and \ref{subfig2}, the subfigures of Figure~\ref{f1}, \ref{curvex} represents function $f(x)=x$.

\end{document}
  • 使用groupplot宏包

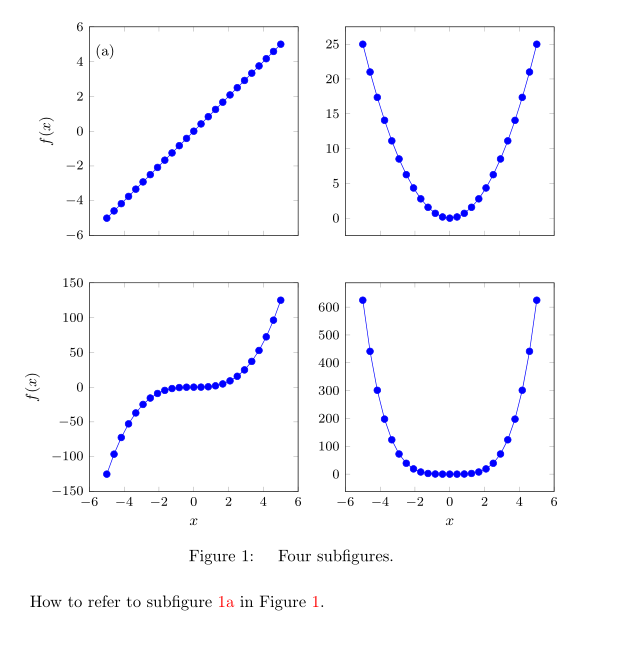

    图3
    代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
\documentclass{article}
\usepackage[dvipdfm]{graphicx}
\def\pgfsysdriver{pgfsys-dvipdfmx.def}
\usepackage{tikz}
\usepackage{pgfplots}
\pgfplotsset{width=7cm,compat=1.15}
\usepgfplotslibrary{groupplots}
\usepackage{caption}
\usepackage{subcaption}
\usepackage[colorlinks,dvipdfm,
            pdfpagemode=UseOutlines,
            pdfstartview=FitH,
            anchorcolor=green,
            citecolor=blue,
            linkcolor=red,
            hyperindex=true,
            pagebackref,
            bookmarksnumbered,
            bookmarksopenlevel=2,
            colorlinks]{hyperref}
\begin{document}
\begin{figure}[htb]
\centering
\begin{tikzpicture}
\begin{groupplot}[
group style={
group name=my plots,
group size=2 by 2,
xlabels at=edge bottom,
xlabels at=all,
ylabels at=edge left,
x descriptions at=edge bottom,
},
footnotesize,
width=6cm,
height=6cm,
%
xlabel=$x$,
ylabel=$f(x)$,
]
\nextgroupplot
\addplot {x};
\node [text width=1em,anchor=north west] at (rel axis cs: 0,1)
                {\subcaption{\label{f11}}};%<- changed
\nextgroupplot
\addplot {x^2};
\nextgroupplot
\addplot {x^3};
\nextgroupplot
\addplot {x^4};
\end{groupplot}
\end{tikzpicture}
\caption{\hspace{1em}Four subfigures.}\label{f1}
\end{figure}
How to refer to subfigure~\ref{f11} in Figure~\ref{f1}.

\end{document}
  • 使用matrix宏包
    图4
    代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
\documentclass{article}
\usepackage[dvipdfm]{graphicx}
\def\pgfsysdriver{pgfsys-dvipdfmx.def}
\usepackage{tikz}
\usepackage{pgfplots}
\pgfplotsset{width=7cm,compat=1.15}
\usepgfplotslibrary{groupplots}
\usetikzlibrary{matrix}
\usepackage{caption}
\usepackage{subcaption}
\usepackage[colorlinks,dvipdfm,
            pdfpagemode=UseOutlines,
            pdfstartview=FitH,
            anchorcolor=green,
            citecolor=blue,
            linkcolor=red,
            hyperindex=true,
            pagebackref,
            bookmarksnumbered,
            bookmarksopenlevel=2,
            colorlinks]{hyperref}
\begin{document}
\begin{figure}[htb]
\centering
\begin{tikzpicture}
\pgfplotsset{small}
\matrix {
\begin{axis}[ylabel={$f(x)=x$},ylabel style={font=\small}]
\addplot {x};
\node [text width=1em,anchor=north west] at (rel axis cs: 0,1)
                {\subcaption{\label{f11}}};%<- changed
\end{axis}
&
% differently large labels are aligned automatically:
\begin{axis}[ylabel={$f(x)=x^2$},ylabel style={font=\small}]
\addplot {x^2};
\end{axis}
\\
\begin{axis}[ylabel={$f(x)=x^3$},ylabel style={font=\small},xlabel=$x$,xlabel style={font=\small}]
\addplot {x^3};
\end{axis}
&
\begin{axis}[ylabel={$f(x)=x^4$},ylabel style={font=\small},xlabel=$x$,xlabel style={font=\small}]
\addplot {x^4};
\end{axis}
\\
};
\end{tikzpicture}
\caption{\hspace{1em}Four subfigures.}\label{f1}
\end{figure}
How to refer to subfigure~\ref{f11} in Figure~\ref{f1}.

\end{document}

Note: 第三种和第四种方法不适合需要单独引用每一个子图的情况，比较适合把四张图看成一个整体的情况。

参考文献：
[1] pgfplots manual: http://pgfplots.sourceforge.net/pgfplots.pdf
